Automatic nipple drinking line system for broiler chicken farm
Product Description
This system can provide fresh and clean water for poultry which is crucial for the growth of Poultry. The drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easier.

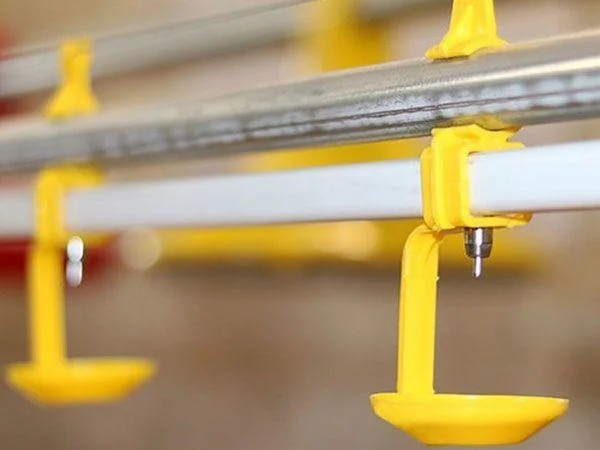

Nipple drinking line system
In modern poultry production, nipple drinkers have been proven to be a reliable and hygienic solution for the supply of water. It is consisted by water front parts, drinking system, hanging system, regulator and water line end parts .
| Name | Description |
| Nipple shell | Made of high-quality engineering plastic, and the valve rod inside is made of high-quality stainless steel. |
| Valve stem | Can rotate freely at 360 degree to meet bird water demand of different period |
| Hanging system | It is easy to adjust the height and the levelness by the winch and the adjustable strip |
| Structure | Double-decked seal structure can effectively avoid wasting water and the resulting impact on the environment humidity. |
| Feeding capacity | broiler: 8-12 birds /nipple, birds in cage: 12 birds/nipple, breeder: 10 birds/nipple |
| Dosing device | Flow rate: 10 L / h - 2.5 m3/h Working pressure :0.3bar-6bar Dosing rate: 0.02L / h - 50 L/ h Maximum working temperature: 40ºC Adjustment ratio: 0.2% to 2%(1:500-1:50) Connecting size: external thread G3/4 |
Water Level Display Height:
| Chicken Age (days) | 1-7days | 8-14days | More than 15 days |
| Water Level Height of display Tube (mm) | 50-80mm | 80-200mm | 200-350mm |
Excellent value service we provide
1. Poultry house site selection.
2. Poultry house design and construction, supply steel structure material.
3. Poultry equipment installation.
4. Free technical guidance and good after-sale service.
Our services :
*Site selection of standardization chicken farm
*chicken house design
*Construction guidance
*Breeding worker training
*On site technology instruction
Poultry farming equipment broiler equipment
*Using South Africa auger,
*TaiWan gear motor,
*and using top quality material for each accessory,
*you can see our perfect products from all details.
poultry farming system poultry farming system poultry farming system poultry f*Automatic main stock line system poultry farming system poultry farm
**Automatic feeding system poultry farming system poultry farming system poultry **Nipple drinking system poultry farming system poultry farming system poultry **Automatic environment control system
*Ventilation system poultry farming system poultry farming system poultry farming 8* Cooling pad system
*Spraying system
poultry farming system poultry farming system poultry farming system poultry farmy
Advantages to use our automatic poultry equipment :
poultry farming system poultry farming system poultry farming system poultry farm
*Time saving
*Labour saving
*Increasing chicken living rate.
*High quality to ensure non stopping running of your house.
*Comparatively cheap price.
Welcome contact us for more detailed informations.
